SPECIAL VERSIONS OF THE COMPRESSOR UNITS

The special versions differ from the standard version regarding their integrated euipment. The equipment characteristics are:


  • Cooling (tube cooler)
  • Control System (Control Block)
  • Protection System (circuit board, power relays)

Beside the established special versions (below), we produce and test customized inquiries. In case of special requirements regarding the equipment and operating voltage of our compressor units, we can offer individual solutions.





COMPRESSOR UNIT
KC100/ 1.0 - 12V DC & 24V DC

  • Equipment: motor terminal board
  • no cooling, control system, protection system

12 V 24 V
maximum working pressure: bar 10 10
inlet volume: l/ min. 75 75
effect. capacity at 6b: l/ min. 52 52
compressor speed: U/ min. 1500 1500
motor rating: kW 0,5 0,5
power consumption: A 48 24
system of protection: IP 66 66
shielded: ja ja
oil filling (SAE HD 10): l 0,13 0,13
weight: kg 20 20
sound performance level LWA: dB 84 84
dimensions (L x W x H): mm 390 x 255 x 320

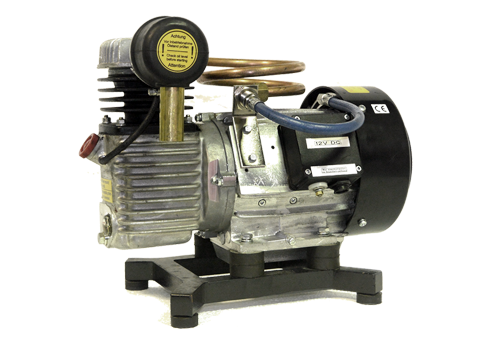

COMPRESSOR UNIT
KC100/ 1.3.3.1 - 12V DC & 24V DC

  • Equipment: cooling, protection system (S3)
  • no control system

12 V 24 V
maximum working pressure: bar 10 10
inlet volume: l/ min. 75 75
effect. capacity at 6b: l/ min. 52 52
compressor speed: U/ min. 1500 1500
motor rating: kW 0,5 0,5
power consumption: A 48 24
system of protection: IP 66 66
shielded: ja ja
oil filling (SAE HD 10): l 0,13 0,13
weight: kg 20 20
sound performance level LWA: dB 84 84
dimension (L x W x H): mm 390 x 255 x 320




COMPRESSOR UNIT
KC200/ 1.0.0 PF - 24V DC & 48V DC

  • Equipment: power relay, PF … potential free
  • no cooling, control system, circuit board

24 V 48 V
maximum working pressure: bar 10 10
inlet volume: l/ min. 150 150
effect. capacity at 6b: l/ min. 105 105
compressor speed: U/ min. 2500 2500
motor rating: kW 1 1
power consumption: A 48 24
system of protection: IP 66 66
shielded: ja ja
oil filling (SAE HD 10): l 0,13 0,13
weight: kg 25 25
sound performance level LWA: dB 84 84
dimension: mm 440 x 255 x 320 440 x 285 x 320

This special version is available in a metal case including a connected air tank. The compressor system integrates:

  • Operating hour meter
  • Pressure switch and safety valve
  • Pressure regulator and manometer

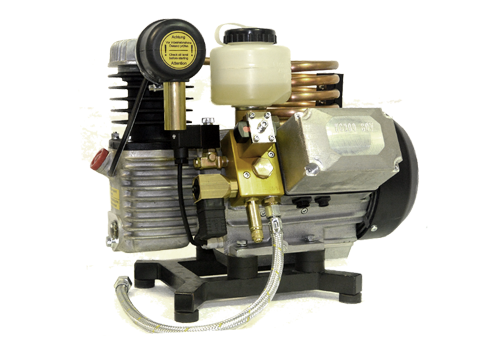

COMPRESSOR UNIT
KC275/ 1.21 80V DC

  • Equipment: Like standard version, with more power (optional with/ without inbuilt antifreeze system)

80 V
maximum working pressure: bar 10
inlet volume: l/ min. 230
effect. capacity at 6b: l/ min. 170
compressor speed: U/ min. 2950
motor rating: kW 2
power consumption: A 25
system of protection: IP 66
shielded: ja
oil filling (SAE HD 10): l 0,13
weight: kg 25
sound performance level LWA: dB 84
dimension: mm 440 x 290 x 300
duty circle: S3/ 50%




COMPRESSOR UNIT
KC275/ 1.0 110V DC

  • Equipment: motor terminal board
  • no cooling, control system, protection system

110 V
maximum working pressure: bar 10
inlet volume: l/ min. 230
effect. capacity at 6b: l/ min. 170
compressor unit: U/ min. 2950
motor rating: kW 2
power consumption: A 19
system of protection: IP 66
shielded: ja
oil filling (SAE HD 10): l 0,13
weight: kg 25
sound performance level LWA: dB
dimension: mm 440 x 290 x 300
duty circle: S3/ 50%

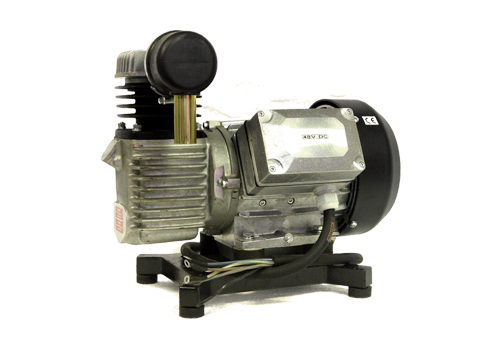

OIL-FREE COMPRESSOR UNITS
KCT100.60/ 1.0 24V DC & 48V DC

  • Equipment: motor terminal board
  • Equipment can be customized

24 V 48 V
maximum working pressure: bar 7 7
inlet volume: l/ min. 60 60
effect. capacity at 6b: l/ min. 35 35
compressor speed: U/ min. 1500 1500
motor rating: kW 0,5 0,53
power consumption: A 24 12
system of protection: IP 66 66
shielded: ja ja
weight: kg 20 20
sound performance level LWA: dB 84 84
dimension: mm 395 x 260 x 297 390 x 265 x 320




OIL-FREE COMPRESSOR UNIT
KCT100.90/ 1.0 24V DC & 48V DC

  • Equipment: motor terminal board
  • Equipment can be customized

24 V 48 V
maximum working pressure: bar 7 7
inlet volume: l/ min. 90 90
effect. capacity at 6b: l/ min. 50 50
compressor speed: U/ min. 1500 1500
motor rating: kW 0,5 0,53
power consumption: A 24 12
system of protection: IP 66 66
shielded: ja ja
weight: kg 20 20
sound performance level LWA: dB 84 84
dimension: mm 395 x 260 x 297 390 x 265 x 320
